16 mm DKOS Female Metric Heavy Straight x 1/4" 1-Piece 1 & 2-Wire Tail
- Part number: K079-1604
- Series: K079 - DKOS Female Metric Heavy x 1-2 Wire 1-Piece Tail
- Thread: Metric
Specifications

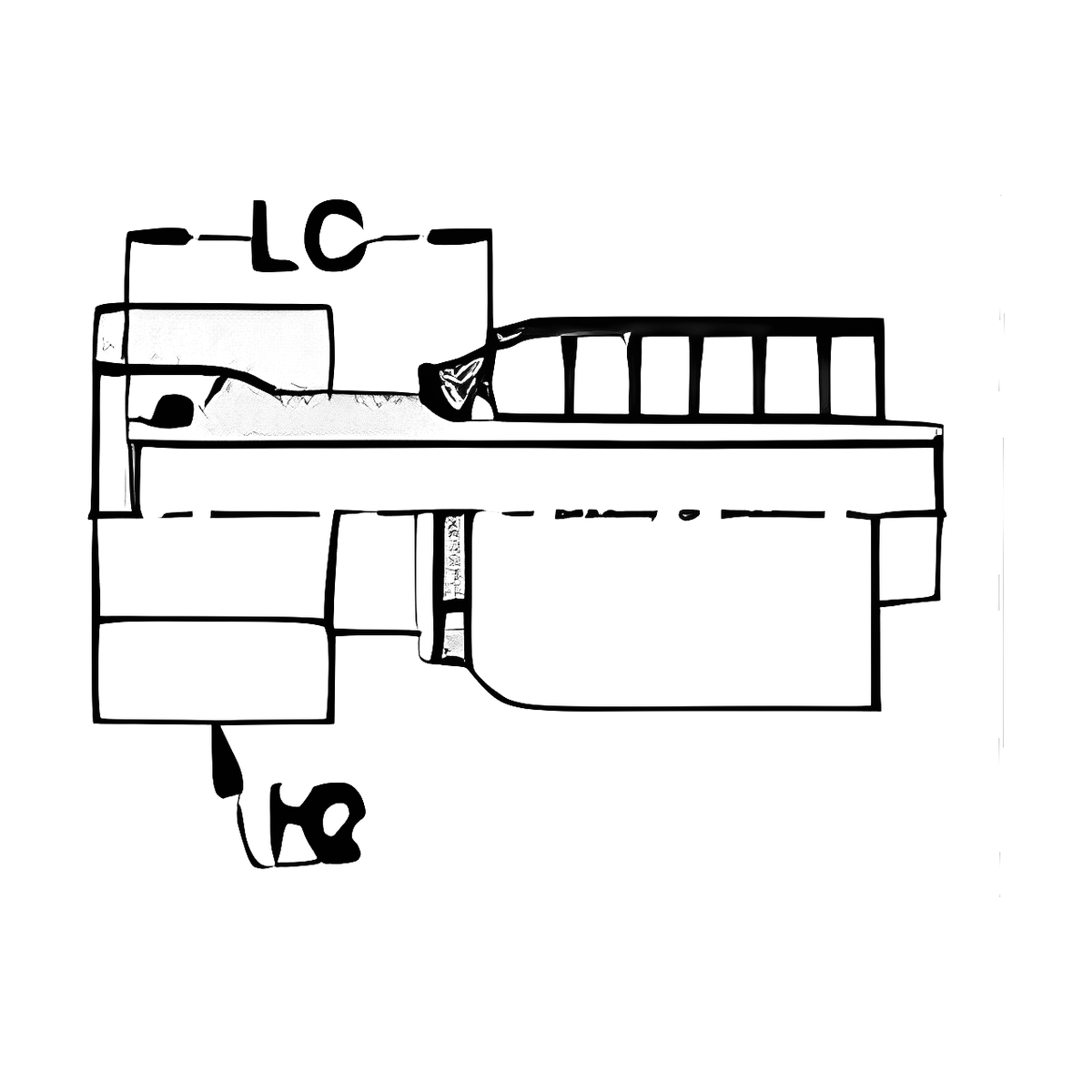

| Thread / fitting type | DKOS FEMALE METRIC HEAVY |
|---|---|
| Thread size & pitch | M16 - 1.5 |
| Thread physical OD/ID 'D' (mm) | 14.5 |
| Suits hose ID | 1/4" |
| Cut-off allowance LC (mm) | 27.6 |
| Hex H2 (mm) | 19 |
Specifications from the BOA 1-Piece Fittings catalogue.
Features
- Ferrule is pre-crimped to the hose tail, so there is no risk of collar misalignment
- The correct ferrule is always fitted, as it is permanently attached to the hose tail
- Suited to general applications and quick assembly
- Matched to BOA's hose range: K-Series suits 1-2 wire braid hose, J-Series (non-skive) suits 4-6 wire multi-spiral hose
Crimp hose tail fitting from BOA Hydraulics' matched hose and fitting range.
