30 mm DKOS Female Metric Heavy Straight x 3/4" Swage Hosetail (1-PC)
$114.95
Skip to product information
30 mm DKOS Female Metric Heavy Straight x 3/4" Swage Hosetail (1-PC)
$114.95
inc GST
Shipping calculated at checkout.
30 mm DKOS Female Metric Heavy Straight x 3/4" Swage Hosetail (1-PC)
- Part number: J079-3012
- Series: J079 - DKOS Metric Female Heavy x MS355/360 M/S Non-Skive Tail
- Thread: Metric
Specifications
| Thread / fitting type | DKOS FEMALE METRIC HEAVY |
|---|---|
| Thread size & pitch | M30 x 2.0 |
| Thread physical OD/ID 'D' (mm) | 30 |
| Suits hose ID | 3/4 |

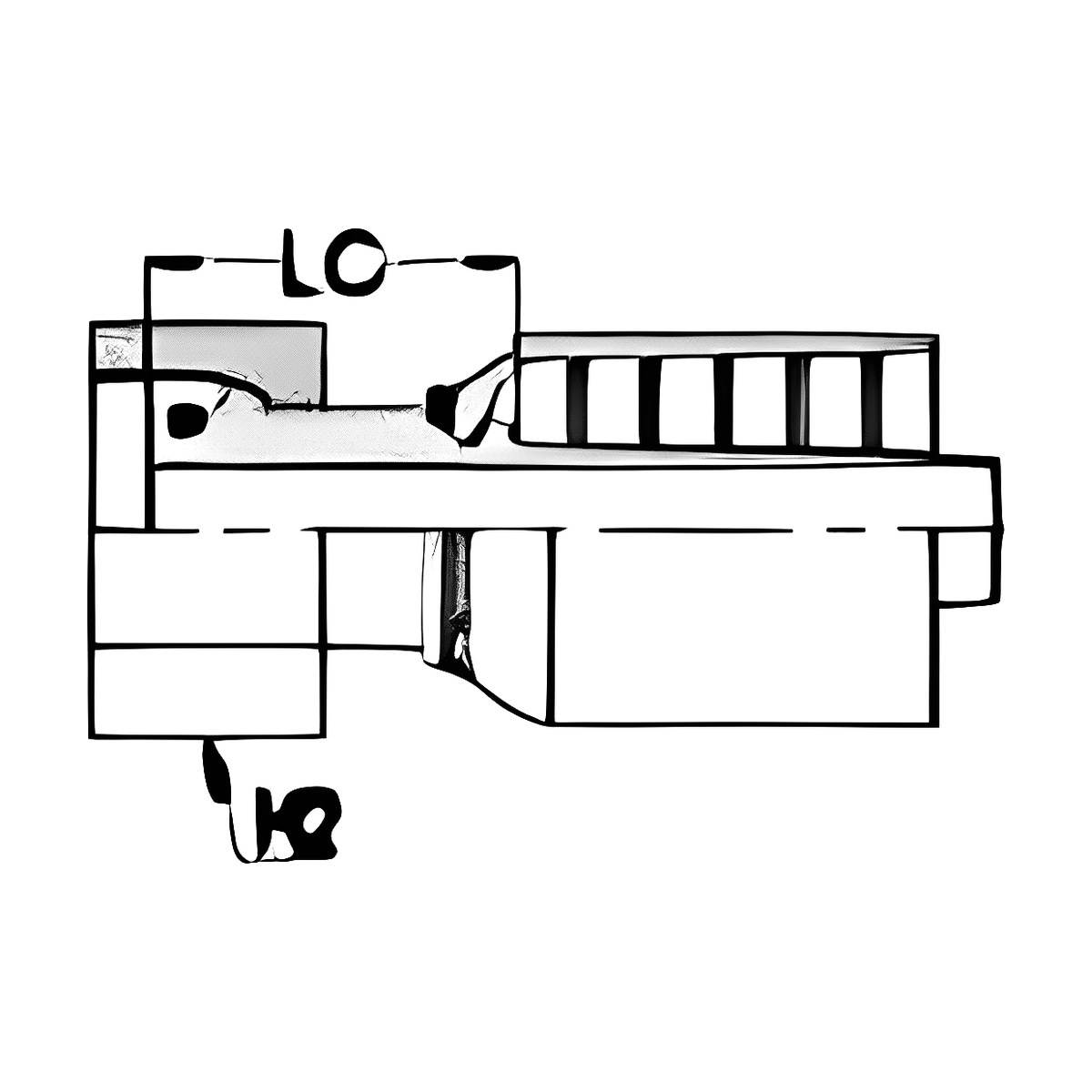

| Cut-off allowance LC (mm) | 31.2 |
| Hex H2 (mm) | 36 |
Specifications from the BOA 1-Piece Fittings catalogue.
Features
- Ferrule is pre-crimped to the hose tail, so there is no risk of collar misalignment
- The correct ferrule is always fitted, as it is permanently attached to the hose tail
- Suited to general applications and quick assembly
- Matched to BOA's hose range: K-Series suits 1-2 wire braid hose, J-Series (non-skive) suits 4-6 wire multi-spiral hose
Crimp hose tail fitting from BOA Hydraulics' matched hose and fitting range.
