7/8" JIC Male Straight x 1/2" 1-Piece M/S Non-Skive Tail
$48.27
Skip to product information
7/8" JIC Male Straight x 1/2" 1-Piece M/S Non-Skive Tail
$48.27
inc GST
Shipping calculated at checkout.
7/8" JIC Male Straight x 1/2" 1-Piece M/S Non-Skive Tail
- Part number: J018-1408
- Series: J018 - JIC Male x MS355/MS360 1-Piece M/S Non-Skive Tail
- Thread: JIC
Specifications
| Thread / fitting type | JIC MALE |
|---|---|
| Thread size & pitch | 7/8" - 14 |
| Nominal pipe size | 5/8" |
| Thread physical OD/ID 'D' (mm) | 22.17 |
| Suits hose ID | 1/2" |

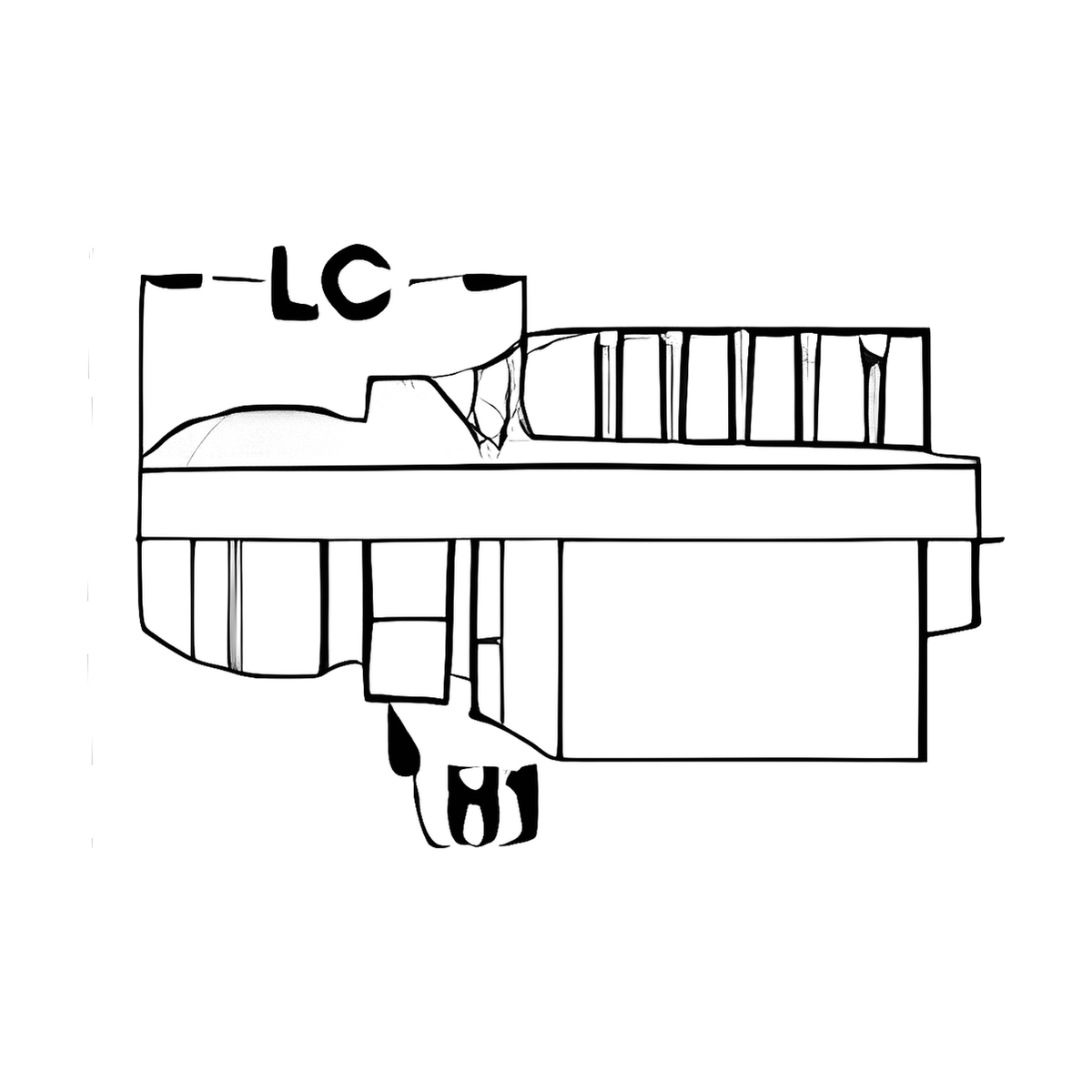

| Cut-off allowance LC (mm) | 33.8 |
Specifications from the BOA 1-Piece Fittings catalogue.
Features
- Ferrule is pre-crimped to the hose tail, so there is no risk of collar misalignment
- The correct ferrule is always fitted, as it is permanently attached to the hose tail
- Suited to general applications and quick assembly
- Matched to BOA's hose range: K-Series suits 1-2 wire braid hose, J-Series (non-skive) suits 4-6 wire multi-spiral hose
Crimp hose tail fitting from BOA Hydraulics' matched hose and fitting range.
