Hose 1/2 x JIC F 3/4 45 (L08JF1245)
$86.85
Skip to product information
Hose 1/2 x JIC F 3/4 45 (L08JF1245)
$86.85
inc GST
Shipping calculated at checkout.

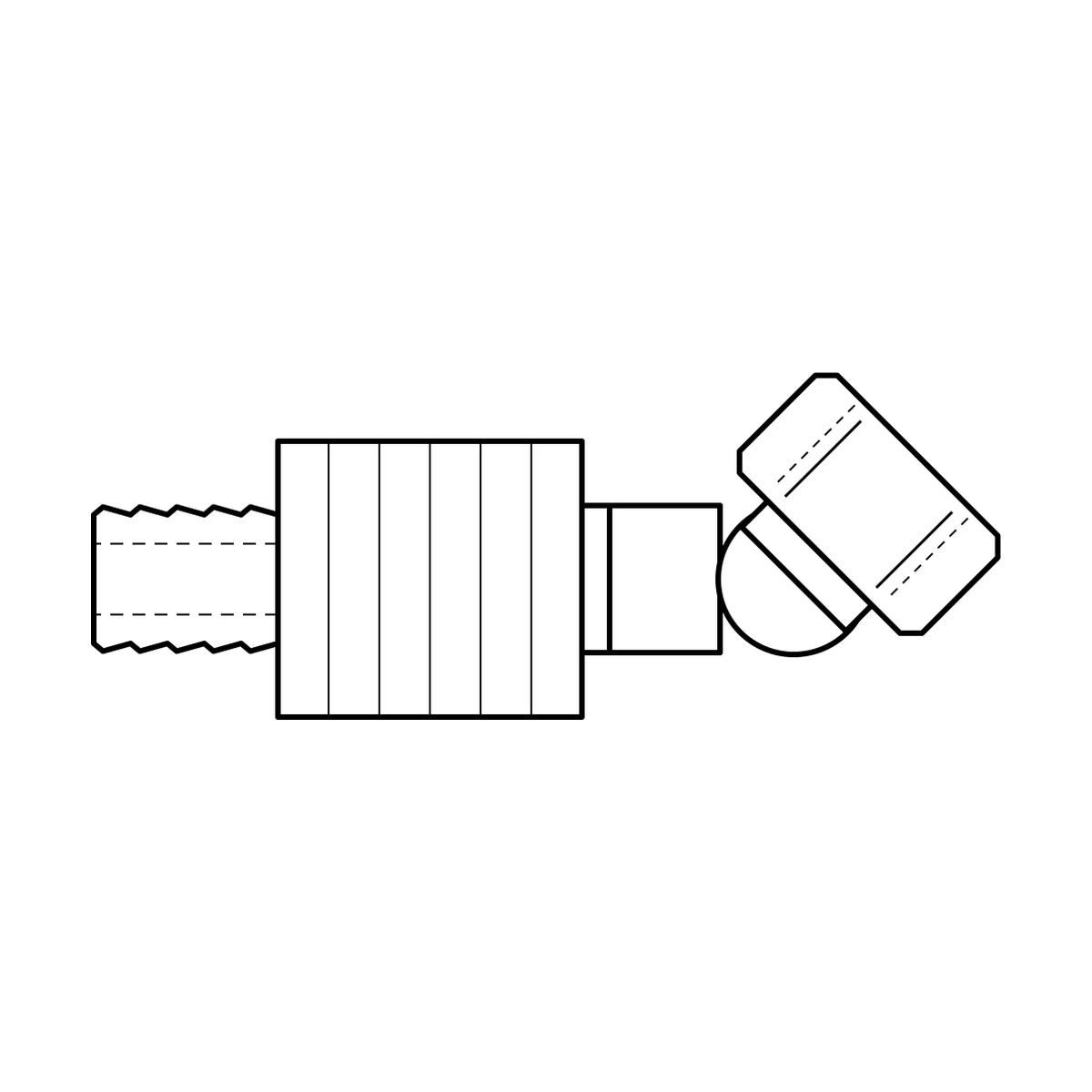

Hose 1/2 x JIC F 3/4 45
- Part number: L08JF1245
- Also referenced as: J064-1208
- Thread: JIC
Specifications
| Thread / fitting type | JIC FEMALE |
|---|---|
| Nominal pipe size | 1/2" |
| Thread physical OD/ID 'D' (mm) | 17.6 |
| Suits hose ID | 1/2" |
| Cut-off allowance LC (mm) | 46.7 |
| Hex H2 (mm) | 25 |
Specifications from the BOA 1-Piece Fittings catalogue (part J064-1208).
Features
- Ferrule is pre-crimped to the hose tail, so there is no risk of collar misalignment
- The correct ferrule is always fitted, as it is permanently attached to the hose tail
- Suited to general applications and quick assembly
- Matched to BOA's hose range: K-Series suits 1-2 wire braid hose, J-Series (non-skive) suits 4-6 wire multi-spiral hose
Crimp hose tail fitting from BOA Hydraulics' matched hose and fitting range.
