Hose 1/2 x Metric Female Ball Nose 15L
$49.06
Skip to product information
Hose 1/2 x Metric Female Ball Nose 15L
$49.06
inc GST
Shipping calculated at checkout.
Hose 1/2 x Metric Female Ball Nose 15L
- Part number: K08MF1522A
- Also referenced as: K081-2208
- Thread: Metric
Specifications
| Thread / fitting type | DKOL FEMALE METRIC LIGHT |
|---|---|
| Thread size & pitch | M22 - 1.5 |
| Thread physical OD/ID 'D' (mm) | 20.5 |
| Suits hose ID | 1/2" |
| Cut-off allowance LC (mm) | 27.6 |
| Hex H2 (mm) | 27 |

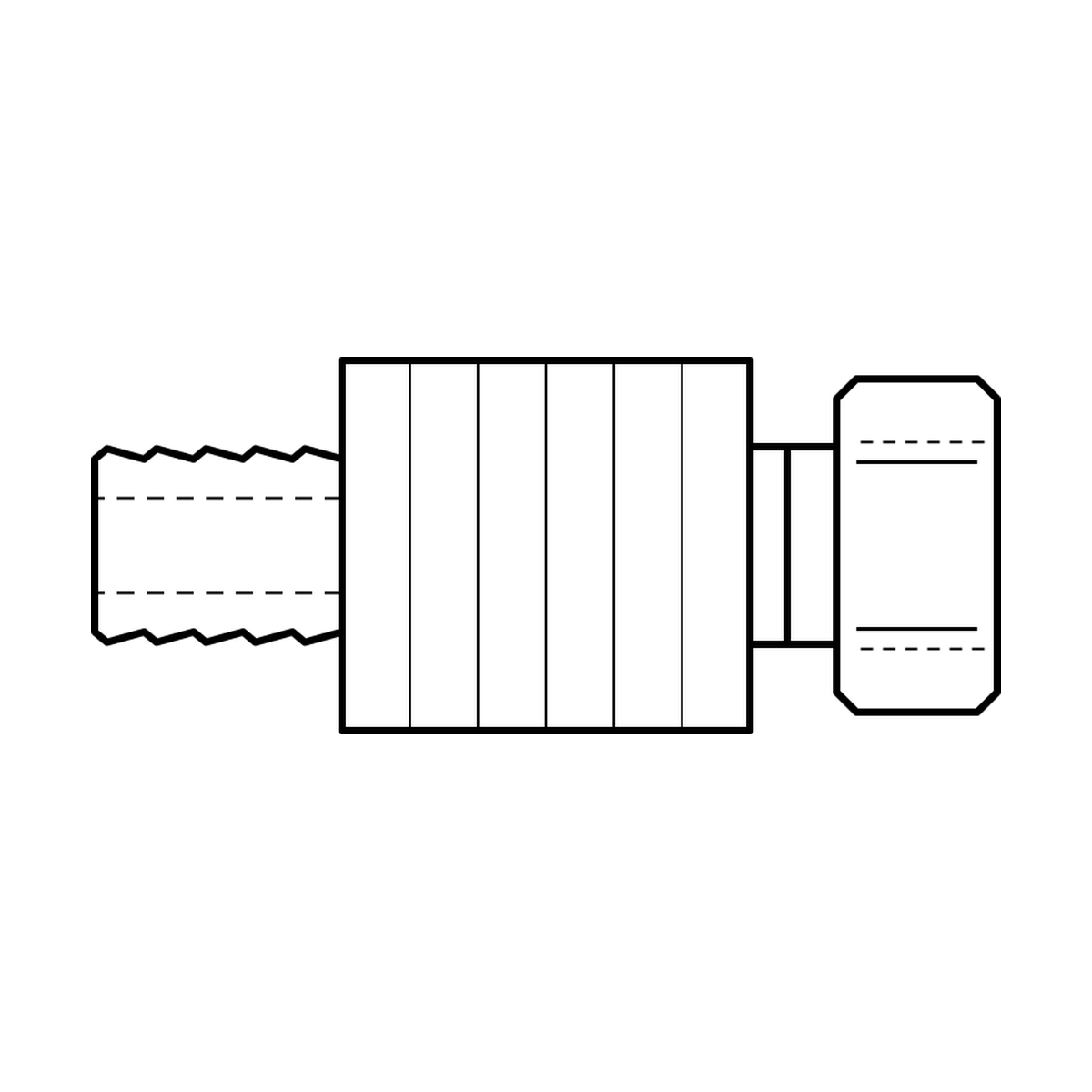

Specifications from the BOA 1-Piece Fittings catalogue (part K081-2208).
Features
- Ferrule is pre-crimped to the hose tail, so there is no risk of collar misalignment
- The correct ferrule is always fitted, as it is permanently attached to the hose tail
- Suited to general applications and quick assembly
- Matched to BOA's hose range: K-Series suits 1-2 wire braid hose, J-Series (non-skive) suits 4-6 wire multi-spiral hose
Crimp hose tail fitting from BOA Hydraulics' matched hose and fitting range.
