Hose 1 x BSP F 1 45 (N16BF1645)
$222.18
Skip to product information
Hose 1 x BSP F 1 45 (N16BF1645)
$222.18
inc GST
Shipping calculated at checkout.

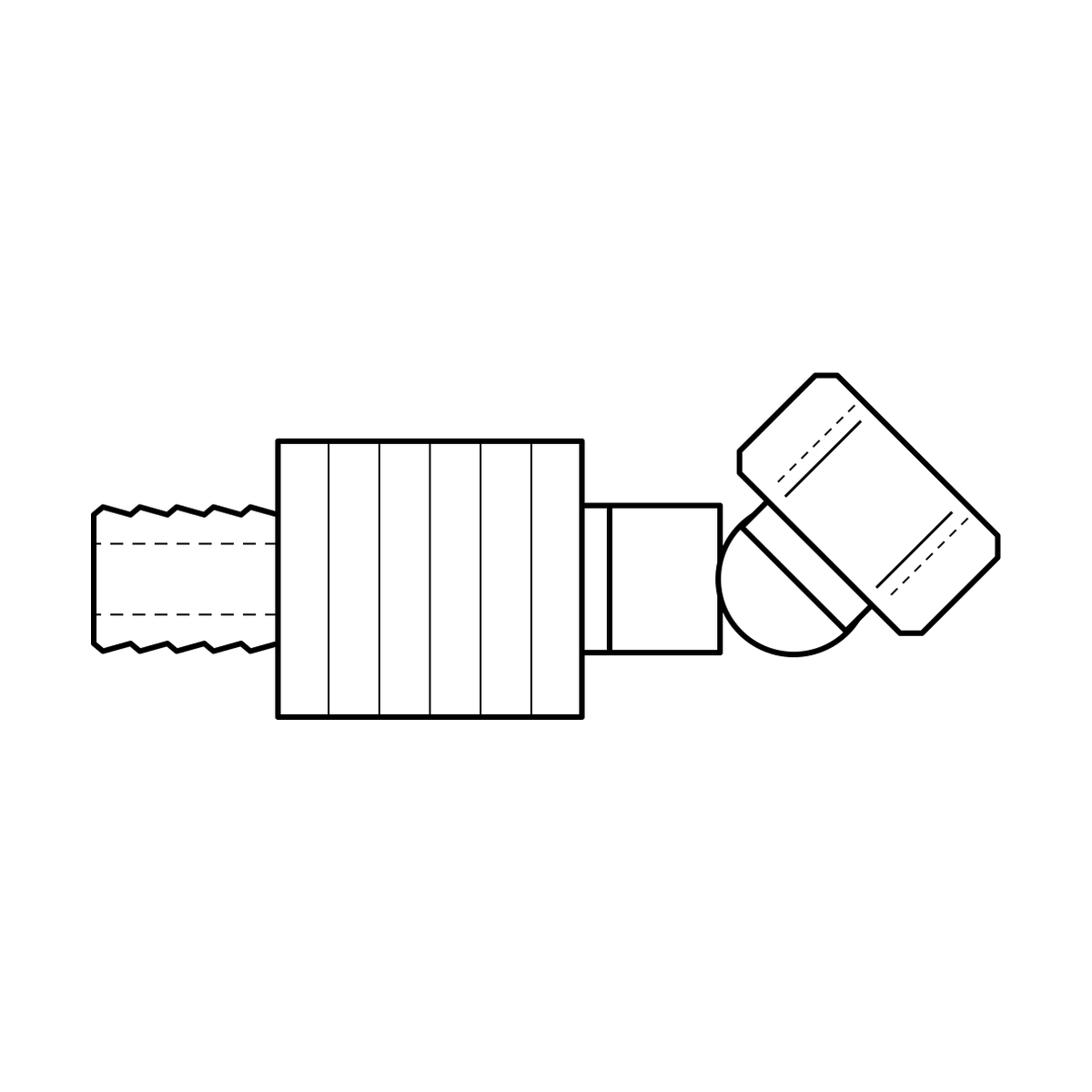

Hose 1 x BSP F 1 45
- Part number: N16BF1645
- Also referenced as: J060-1616
- Thread: BSP
Specifications
| Thread / fitting type | BSPP FEMALE |
|---|---|
| Thread size & pitch | 1" - 11 |
| Nominal pipe size | 1" |
| Thread physical OD/ID 'D' (mm) | 30.3 |
| Suits hose ID | 1" |
| Cut-off allowance LC (mm) | 88.3 |
| Hex H2 (mm) | 38 |
Specifications from the BOA 1-Piece Fittings catalogue (part J060-1616).
Features
- Ferrule is pre-crimped to the hose tail, so there is no risk of collar misalignment
- The correct ferrule is always fitted, as it is permanently attached to the hose tail
- Suited to general applications and quick assembly
- Matched to BOA's hose range: K-Series suits 1-2 wire braid hose, J-Series (non-skive) suits 4-6 wire multi-spiral hose
Crimp hose tail fitting from BOA Hydraulics' matched hose and fitting range.
