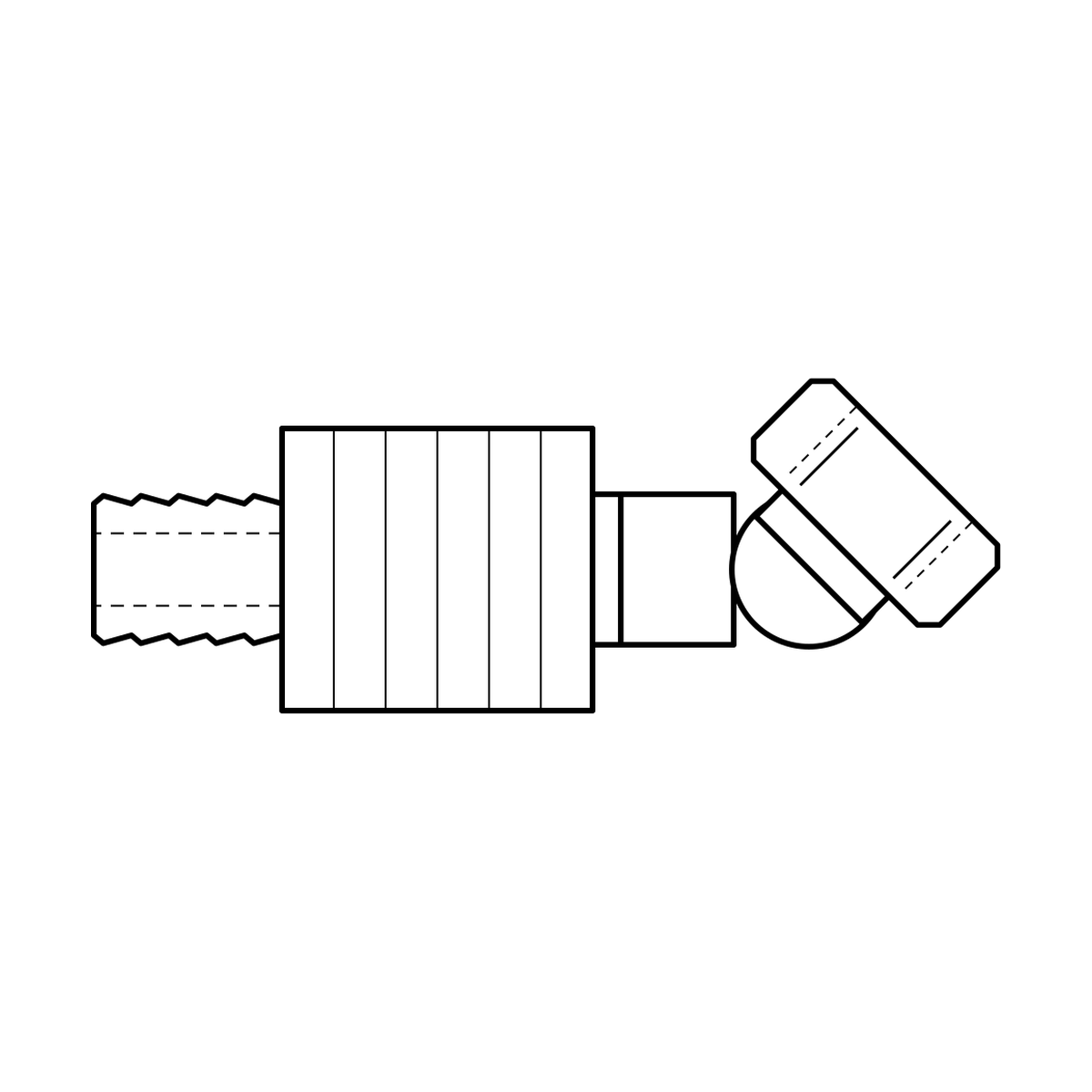

Hose 1 x ORFS F 1 7/16 45 (N16FO2345)
$263.07
inc GST
Shipping calculated at checkout.
Hose 1 x ORFS F 1 7/16 45
- Part number: N16FO2345
- Also referenced as: J063-2316
- Thread: ORFS
Specifications
| Thread / fitting type | ORFS FEMALE |
|---|---|
| Thread size & pitch | 1. 7/16 - 12 |
| Thread physical OD/ID 'D' (mm) | 34.54 |
| Suits hose ID | 1" |
| Cut-off allowance LC (mm) | 82.6 |
| Hex H2 (mm) | 41 |
Specifications from the BOA 1-Piece Fittings catalogue (part J063-2316).
Features
- Ferrule is pre-crimped to the hose tail, so there is no risk of collar misalignment
- The correct ferrule is always fitted, as it is permanently attached to the hose tail
- Suited to general applications and quick assembly
- Matched to BOA's hose range: K-Series suits 1-2 wire braid hose, J-Series (non-skive) suits 4-6 wire multi-spiral hose
Crimp hose tail fitting from BOA Hydraulics' matched hose and fitting range.
