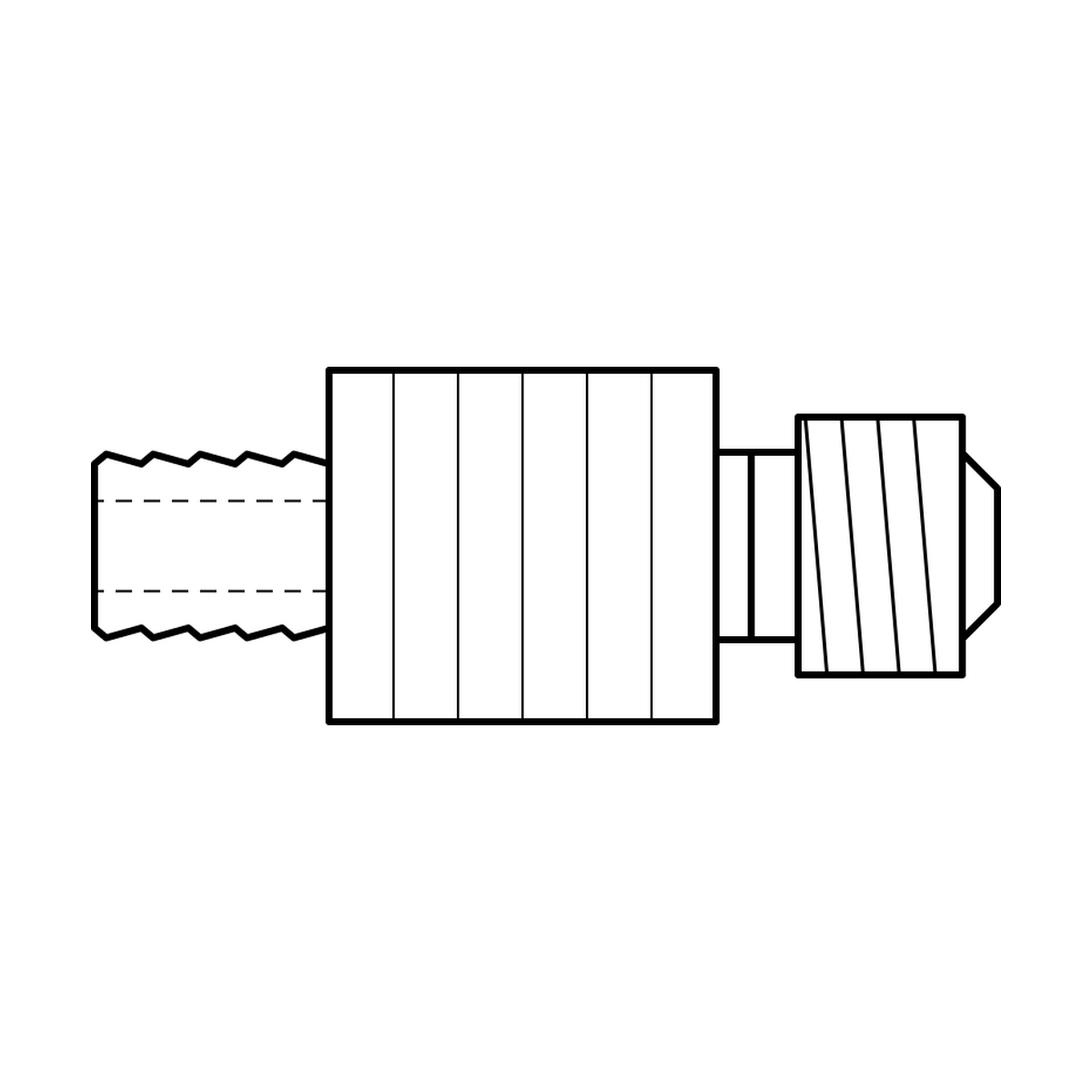

Hose 3/4 x JIC M 1 1/16
- Part number: K12JM17
- Also referenced as: K018-1712
- Thread: JIC
Specifications
| Thread / fitting type | JIC MALE |
|---|---|
| Thread size & pitch | 1 1/16" - 12 |
| Nominal pipe size | 3/4" |
| Thread physical OD/ID 'D' (mm) | 26.95 |
| Suits hose ID | 3/4" |
| Cut-off allowance LC (mm) | 36.8 |
Specifications from the BOA 1-Piece Fittings catalogue (part K018-1712).
Features
- Ferrule is pre-crimped to the hose tail, so there is no risk of collar misalignment
- The correct ferrule is always fitted, as it is permanently attached to the hose tail
- Suited to general applications and quick assembly
- Matched to BOA's hose range: K-Series suits 1-2 wire braid hose, J-Series (non-skive) suits 4-6 wire multi-spiral hose
Crimp hose tail fitting from BOA Hydraulics' matched hose and fitting range.
