Hose 3/4 x ORFS F 1 3/16 (K12FO19)
$80.38
Skip to product information
Hose 3/4 x ORFS F 1 3/16 (K12FO19)
$80.38
inc GST
Shipping calculated at checkout.

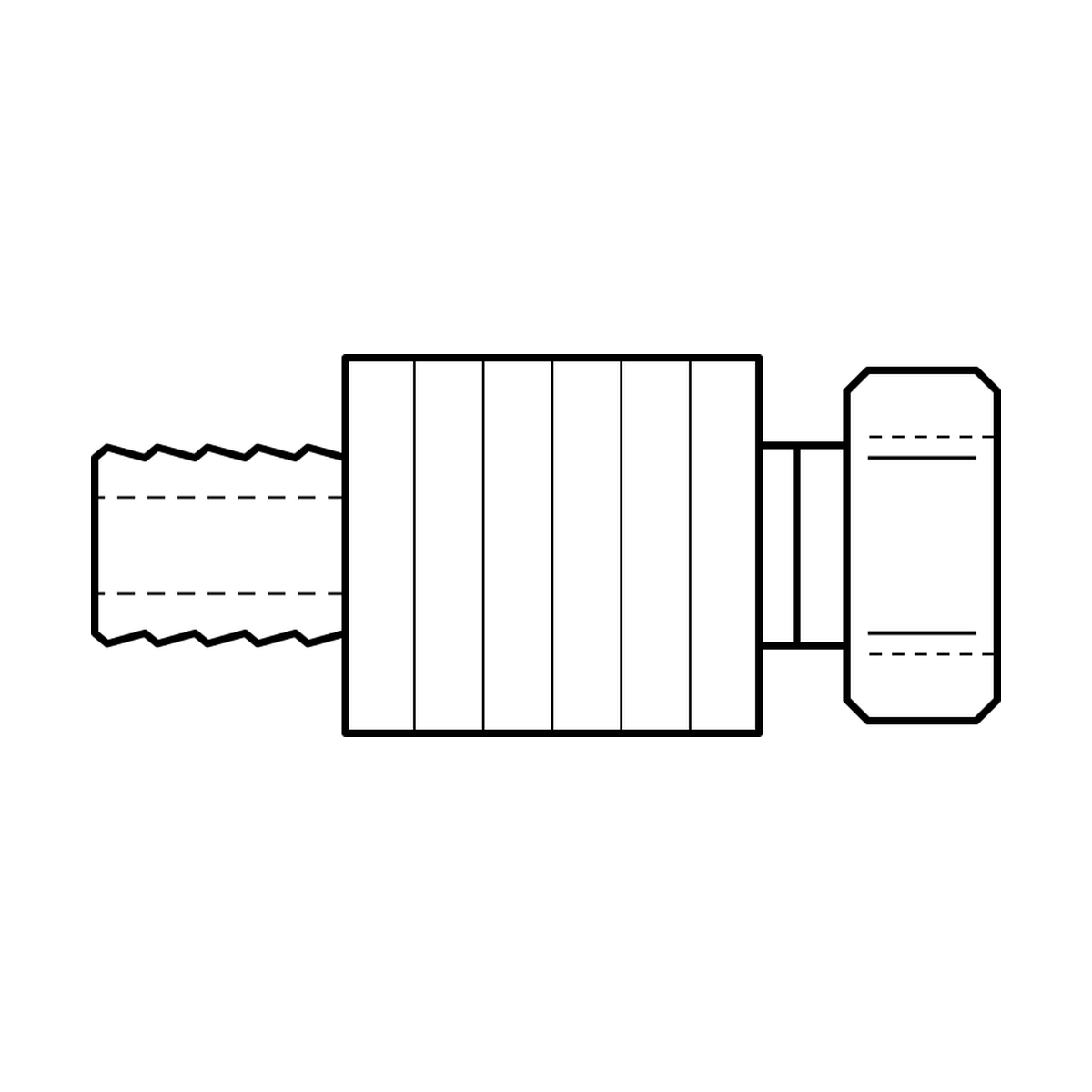

Hose 3/4 x ORFS F 1 3/16
- Part number: K12FO19
- Also referenced as: K013-1912
- Thread: ORFS
Specifications
| Thread / fitting type | ORFS FEMALE |
|---|---|
| Thread size & pitch | 1. 3/16 - 12 |
| Nominal pipe size | 3/4" |
| Thread physical OD/ID 'D' (mm) | 28.19 |
| Suits hose ID | 3/4" |
| Cut-off allowance LC (mm) | 41.8 |
| Hex H2 (mm) | 36 |
Specifications from the BOA 1-Piece Fittings catalogue (part K013-1912).
Features
- Ferrule is pre-crimped to the hose tail, so there is no risk of collar misalignment
- The correct ferrule is always fitted, as it is permanently attached to the hose tail
- Suited to general applications and quick assembly
- Matched to BOA's hose range: K-Series suits 1-2 wire braid hose, J-Series (non-skive) suits 4-6 wire multi-spiral hose
Crimp hose tail fitting from BOA Hydraulics' matched hose and fitting range.
