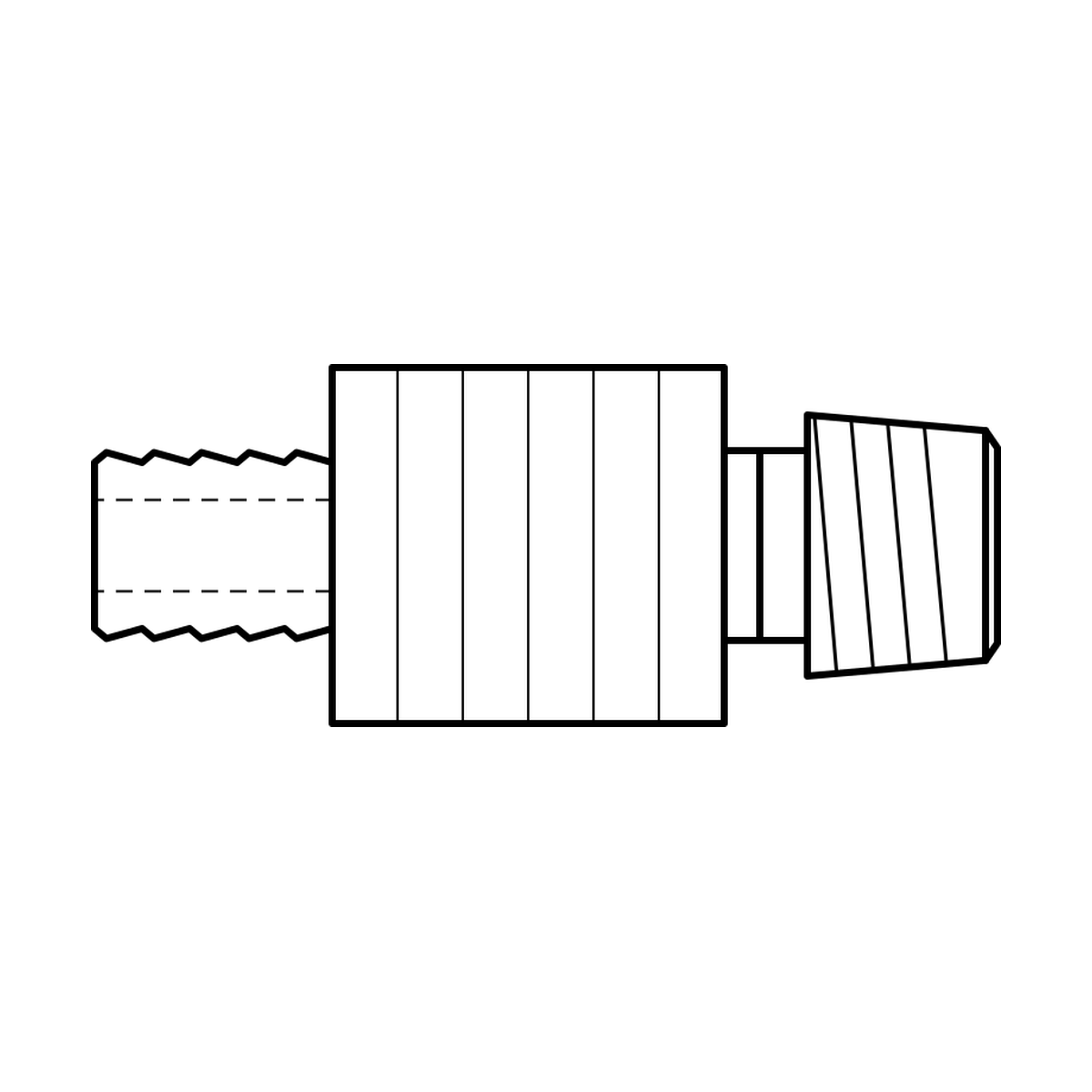

Hose 3/8 x BSPT M 1/2
- Part number: K06BM08
- Also referenced as: K015-0806
- Thread: BSPT
Specifications
| Thread / fitting type | BSPT MALE |
|---|---|
| Thread size & pitch | 1/2" - 14 |
| Nominal pipe size | 1/2" |
| Thread physical OD/ID 'D' (mm) | 20.96 |
| Suits hose ID | 3/8" |
| Cut-off allowance LC (mm) | 33.5 |
Specifications from the BOA 1-Piece Fittings catalogue (part K015-0806).
Features
- Ferrule is pre-crimped to the hose tail, so there is no risk of collar misalignment
- The correct ferrule is always fitted, as it is permanently attached to the hose tail
- Suited to general applications and quick assembly
- Matched to BOA's hose range: K-Series suits 1-2 wire braid hose, J-Series (non-skive) suits 4-6 wire multi-spiral hose
Crimp hose tail fitting from BOA Hydraulics' matched hose and fitting range.
