Hose 3/8 x JIC F 9/16 (K06JF09)
$24.81
Skip to product information
Hose 3/8 x JIC F 9/16 (K06JF09)
$24.81
inc GST
Shipping calculated at checkout.
Hose 3/8 x JIC F 9/16
- Part number: K06JF09
- Also referenced as: K005-0906
- Thread: JIC
Specifications
| Thread / fitting type | JIC FEMALE |
|---|---|
| Thread size & pitch | 9/16" - 18 |
| Nominal pipe size | 3/8" |
| Thread physical OD/ID 'D' (mm) | 13 |
| Suits hose ID | 3/8" |
| Cut-off allowance LC (mm) | 15.5 |
| Hex H2 (mm) | 19 |

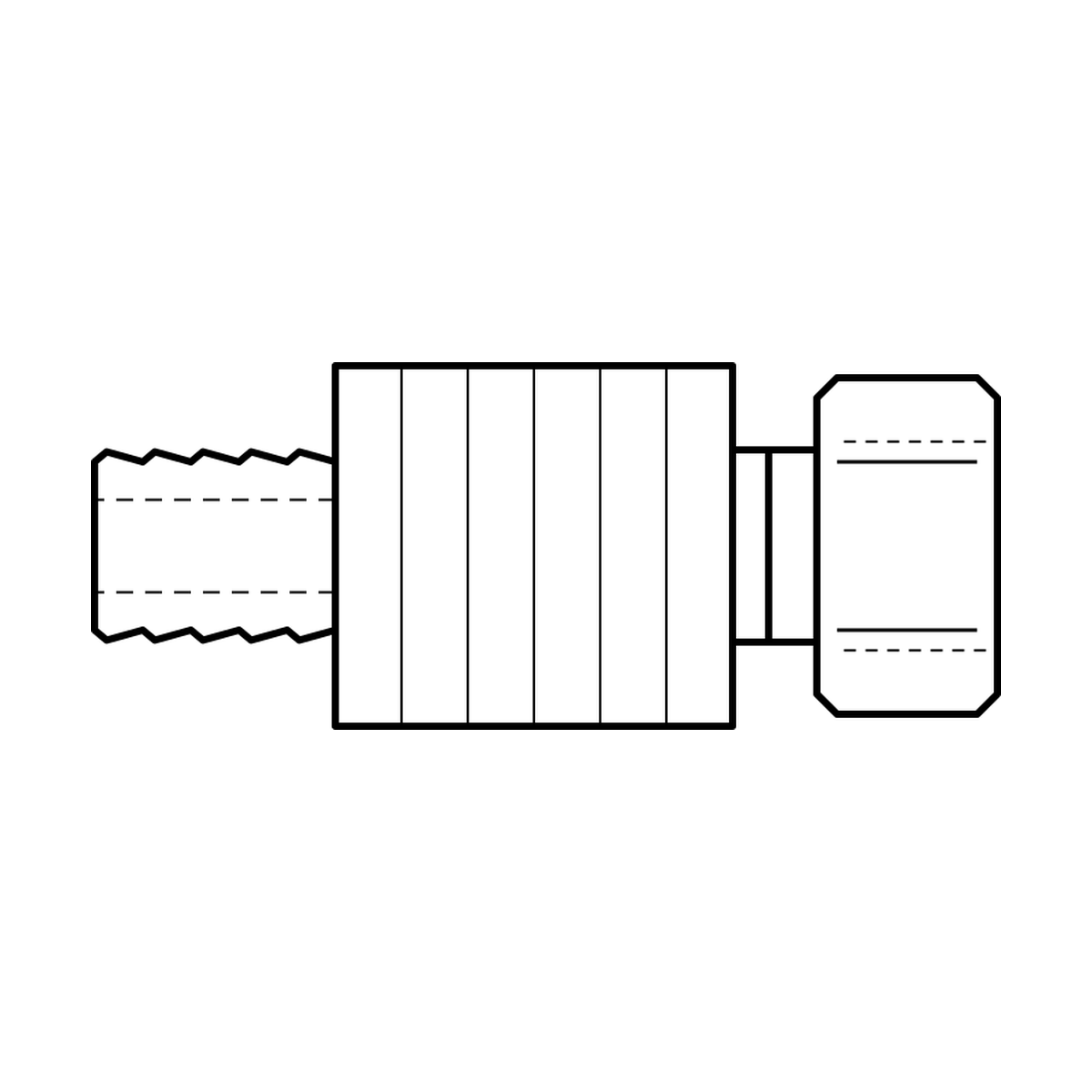

Specifications from the BOA 1-Piece Fittings catalogue (part K005-0906).
Features
- Ferrule is pre-crimped to the hose tail, so there is no risk of collar misalignment
- The correct ferrule is always fitted, as it is permanently attached to the hose tail
- Suited to general applications and quick assembly
- Matched to BOA's hose range: K-Series suits 1-2 wire braid hose, J-Series (non-skive) suits 4-6 wire multi-spiral hose
Crimp hose tail fitting from BOA Hydraulics' matched hose and fitting range.
