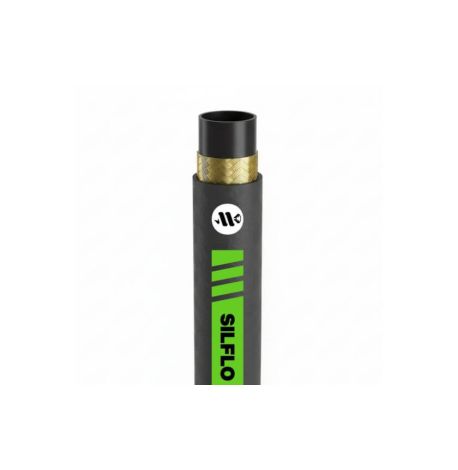

1.1/2 1SN/R1AT Enduromax 1-Wire Hydraulic Hose - Wrapped
Per metre
$146.15
Skip to product information
1.1/2 1SN/R1AT Enduromax 1-Wire Hydraulic Hose - Wrapped
$146.15
inc GST
Shipping calculated at checkout.
1.1/2 1SN/R1AT Enduromax 1-Wire Hydraulic Hose - Wrapped
- Part number: SF1SN-24W
Specifications
| Hose ID (in) | 1 1/2" |
|---|---|
| Hose ID (mm) | 38.1 |
| Working pressure (psi) | 725 |
| Working pressure (bar) | 50 |
| Reinforcement | 1 W/B |
Specifications from the BOA Hose - High Pressure catalogue (part SF1SN-24).
Features
- Inner tube: Synthetic rubber
- Reinforcement: 1 high-tensile steel wire braid
- Cover: Weather, oil and abrasion resistant synthetic rubber. MSHA cover
- Standards: Non-skive. Meets or exceeds SAE J517 100R1, EN853
- Application: High-pressure hose suitable for petroleum-based hydraulic fluids, water-glycol and water-oil fire-resistant fluids, hot oil, grease, lubricants, crude oil, and fuel oils
- Air/gas use: For air and inert gas applications above 100PSI the cover should be pin pricked
- Temperature range: -40°C to +100°C
- Fittings: Suits 1-Piece K Series & 2-Piece S Series Hosetails
Hydraulic hose from BOA Hydraulics' hose range.
